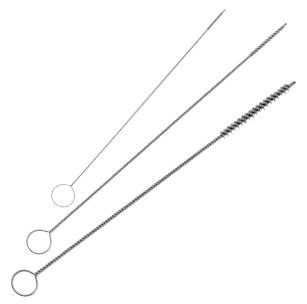

1100 Manually Operated Miniature Nylon or Stainless Steel Brushes

1100 Manually Operated Miniature Nylon or Stainless Steel Brushes
  • Miniature tube brushes are ideal for use on precision components
  • Stainless steel or nylon bristle is available
  • Typical users include electronic manufacturers, scientists and product designers
  • Same price for nylon or stainless steel .003 Wire Diameter

Discount Per Size: 1 Dozen-10%, 3 Dozen-15%, 6 Dozen-20%

Have a question?
Catalog # MaterialBrush Diameter (in.)Brush Part Length (in.)Overall Length (in.) Price Quantity
1102SS Stainless Steel.0201/43 $3.71
1104SS Stainless Steel.0301/43 $3.71
1106SS Stainless Steel.0401/24 $3.71
1108SS Stainless Steel.0501/24 $3.56
1110SS Stainless Steel.0601/24 $3.29
1112SS Stainless Steel.0703/44 $3.29
1114SS Stainless Steel.0803/44 $2.98
1116SS Stainless Steel.09014 $2.98
1118SS Stainless Steel.10014 $2.98
1122SS Stainless Steel.11014 $2.98
1102N Nylon.0201/43 $3.71
1104N Nylon.0301/43 $3.71
1106N Nylon.0401/24 $3.71
1108N Nylon.0501/24 $3.56
1110N Nylon.0601/24 $3.29
1112N Nylon.0703/44 $3.29
1114N Nylon.0803/44 $2.98
1116N Nylon.09014 $2.98
1118N Nylon.10014 $2.98
1122N Nylon.11014 $2.98

Questions & Answers

  • 1. What is your minimum for shipping?

    2. I would order several brushes because I don't know what bristle type and diameter is appropriate, can the ones that are not going to work be returned for a refund?

    The minimum for free shipping is $120. You can return any unused brushes for a full refund within 30 days. Buyer pays return shipping. Thank you for your interest.

  • About your brush diameters:
    1. When you show a brush diameter of .060, is that inches, mm, or cm? I think it's inches?
    2. Is that diameter the bristles or the shaft?
    3. I'm trying to get brushes to clean the socket holes of a 9 pin socket (12AU7, 12AX7), would you have a recommendation as to which size would be most appropriate? I will be honest - CAIG offers a brush designed explicitly f or this but it is pricey. I am looking for a more cost effective solution, and want to buy multiples of the product. Thank you for any help. -Chuck DiGiorgio (610) 213-3024
    Thank you.

    The brush diameter spec measures diameter of the brush part (width of the cross section) and the UOM is inches - ie, .060". A Nylon tube brush is probably the right brush for the application described. What is the hole diameter of the 9 pin socket? You'll want to match brush DIA to this spec, knowing that Nylon bristles will flex some when pressure is applied.

  • is 1116N RoHS 3 compliant ?

    Yes, the 1100 brush series is RoHS 3 compliant.
    Thank you,

  • What grade of stainless steel is used in the twisted handle and bristle portion of the manual, miniature brushes?

    Vicki, the grade of steel used in the handle and the bristle of the 1100 series mini tube brushes is 304 stainless. Thank you for you inquiry.

  • What unit of measure are the brush diameters listed ?

    Inches. Thank you for your inquiry.

  • I need small brushes that won't rust. So should I order stainless steel or nylon?

    They are both good options, it will depend how abrasive you want the bristle to be. Go with Nylon if you need a soft bristle, SS for a more rigid bristle. Thank you for your inquiry.

  • i need a brush to remove rust from a female connection on a flat connector for trailers. the diameter of the tube is 1/8 inch. do you have a brush for this?

    We would recommend a 1403CS or 1403SS manually operated carbon or stainless steel tube brush with 1/8" brush diameter Thank you for your inquiry.

  • Are the handles bendable?

    The handles on the 1100 series tube brushes are flexible, however they do bend with enough force.
    Thank you for your inquiry.

  • I am looking for a nylon brush diameter of about 3/16th inches (5mm). What would you recommend?

    Thank you for your inquiry. Your size is in between the 1301 and 1303 -
    Thank you,
